XCMG ZL50GN Wheel Loader

Overview

The XCMG ZL50GN is a next-generation 5-ton wheel loader developed by XCMG on the basis of its globalized technology resources. It is the optimized successor to the ZL50G, the leading model of China’s third-generation wheel loaders, and is a first-choice machine for ports, mines, engineering construction and logistics operations.

Key Features

• High-torque, high-efficiency drive chain with optimized matching.
• Super-heavy-load structural parts without redundant weight.
• Extended wheelbase for leading working capacity and stability.
• Centering design of main hinge joints reduces turning radius, tire wear and energy consumption.
• Ergonomic integral-skeleton cab with broad visibility, generous space and effective sound insulation.
• Diversified configurations and attachments for different regions and working conditions.

Main Specifications

Parameter	Value
Rated operating load	5,000 kg
Bucket capacity	2.5–4.5 m³
Machine weight	17,500 ± 300 kg
Dump clearance at maximum lift	3,100–3,780 mm
Reach at maximum lift	1,100–1,220 mm
Wheelbase	3,300 mm
Tread	2,250 mm
Max. breakout force	175 ± 5 kN
Hydraulic cycle time — raise	≤ 6 s
Total hydraulic cycle time	≤ 10.5 s
Min. turning radius over tyres	5,925 ± 50 mm
Articulation angle	38°
Gradeability	30°
Tyre size	23.5-25-16PR

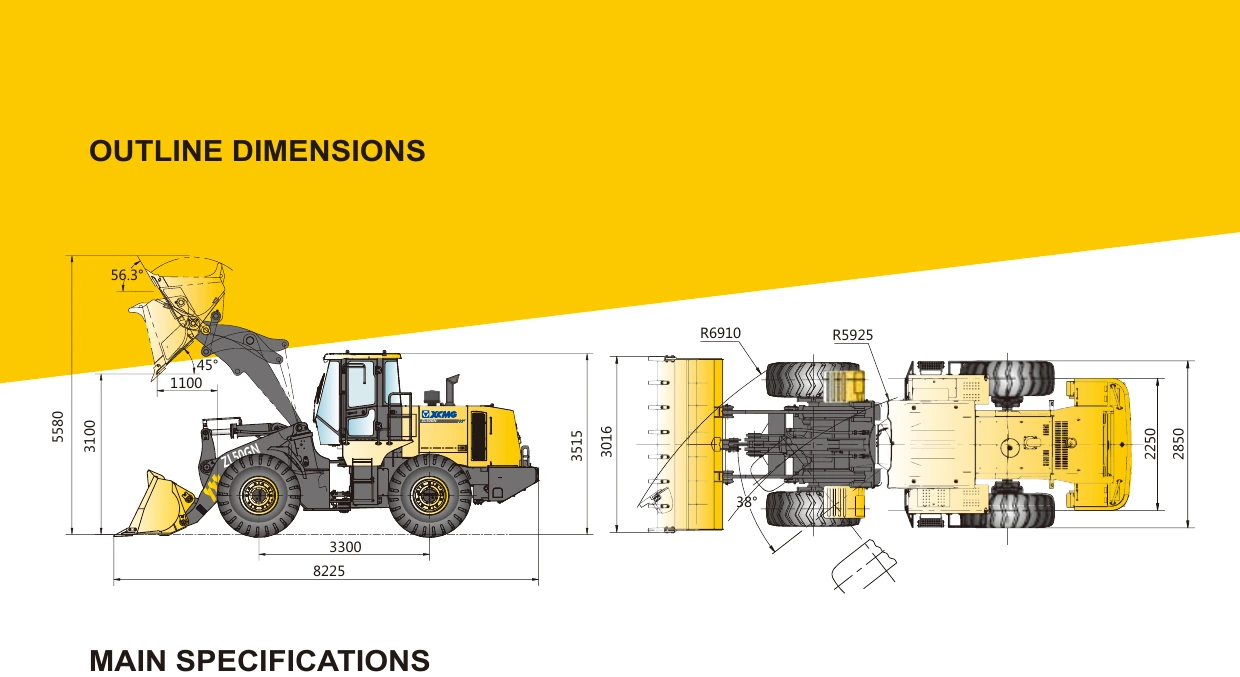

Overall machine dimensions (L×W×H)	8,225 × 3,016 × 3,515 mm
Engine model	WD10G220E21
Rated power	162 kW

Travel speed:

Gear	Forward / Reverse
Gear I	13 / 17 km/h
Gear II (forward)	41 km/h

Performance Highlights

• 160 kN traction force and dump clearance above 3.5 m handle severe site conditions with ease.
• ≥ 7,500 kg lifting capacity and high breakout force handle a wide variety of materials.
• Hydraulic cycle time for raising the bucket is ≤ 6 s; total cycle time is ≤ 10.5 s.

Power and Drive System

• The ZL50GN uses the WD10G220E21 special engine rated at 162 kW. The brochure specifies a low-speed, low-fuel-consumption engine configuration with strong power and a high torque reserve for instantaneous overload demands.
• Three-stage desert filter elements are simple to maintain and economical to run.
• Optional Shangchai engine SC11CB220G2B1.
• Heavy-duty energy-saving transmission with a high-capacity torque converter maximizes engine power utilization; imported critical components improve overload capacity.
• Driveshaft flanges follow DIN and SAE specifications with enlarged fastening-bolt distribution for strong torsion resistance in continuous heavy loading.
• Optional ZF electronic-control countershaft transmission with forward/reverse speeds of 6.5 / 11 / 24 / 38 km/h.
• Enhanced heavy-duty drive axles use integral ring gears and large-modulus gears for outstanding overload resistance.

Operator Cab and Comfort

• All-new digitalized VDO combination instrument with clear, elegant display.
• Steering wheel, seat and pilot joystick are adjustable to the operator’s habits; the follow-up control box moves with the seat for accurate, comfortable operation.
• Full-coverage interior trim, panoramic glass and super-large spherical rearview mirrors enlarge the field of view by 30%.
• Damping and noise-reduction measures for cab and engine hood reduce noise by more than 6 dB.
• The fully enclosed integral-skeleton cab is slightly pressurized with a high-power air-conditioning system for a comfortable and safe environment.

Safety and Convenience

• Ladders and handrails comply with CE-style standards; anti-skid perforated plates are used on the operation platform.
• Air-assisted hydraulic four-wheel caliper brakes provide stable, reliable braking.
• Double-limit steering (primary hydraulic-flexible mode and secondary mechanical-rigid mode) avoids impact and damage.
• Automatic high-position dumping and leveling with transport-position stop block improves efficiency and reduces material splashing.
• Full-hydraulic flow-amplifying steering keeps the machine easy and flexible to control.

Durability and Structural Design

• All-new enhanced heavy-duty design prolongs average service life by about 20%.
• Robot welding and finite-element analysis reduce stress concentration and support impact and overload resistance.
• The high-strength wear-resistant bucket uses high-strength steel plates, improving wear and impact resistance by more than 30%.
• Critical portions use reinforced ribbed-plate structures; optimized boom hinges reduce dumping impact by about 30%.
• Main hinge joints use pioneering double-row tapered roller bearings with high carrying capacity and long life.
• International-quality hydraulic units include a priority distributor valve and flow-amplifying valve with double-pump confluence for low pressure loss and low system heat.
• Hydraulic pipelines use double sealing (DIN 24° taper thread + O-ring) to reduce leakage; wiring harnesses use imported-quality materials.

Maintenance and Service

• Openable rotary rear hood makes radiator cleaning easy; the large upturning side gate simplifies engine and accessory maintenance.
• Open-type brake calipers allow brake-pad replacement without removing the tires.
• Low engine-oil-pressure warning, low brake-pressure warning, and oil-temperature display with high-temperature warning are provided.
• Optimized lubrication points, access passages and service panels simplify daily maintenance.
• Full-life-cycle services and a worldwide marketing service network help keep machines running.

Attachments

Optional work tools include clamps for logs and pipe, side-dumping buckets for narrow sites, snow ploughs for road and street work, and a range of pliers, grabs and pallet forks matched to the ZL50GN’s quick-attach system.

Applications

Ports, quarries and mines, engineering construction, aggregate and ore loading, logistics and bulk material handling, and large construction sites.

Brochure

Download the ZL50GN wheel loader brochure (PDF) for the full specification and optional-attachment tables.

Specifications above follow the XCMG ZL50GN brochure and are shown for reference. Configurations and figures may vary by market, engine-emission level and optional equipment. Contact us for the official datasheet and a quotation for your project.
