XCMG XGTC30L5 Telescopic Crawler Crane

Overview

The XCMG XGTC30L5 (commonly shortened to XGTC30) is a 30-ton telescopic crawler crane developed by XCMG for demanding foundation-construction environments. It combines high lifting performance with a compact transport envelope and strong site adaptability, and is mainly used for plant construction, bridge erection and foundation work.

The model is available in three configurations: Weichai standard, Yuchai, and the battery-electric XGTC30L5-E.

Model Advantages

• Strong lifting performance: in a typical foundation condition, 34.2 m boom at 14 m radius lifts 5.6 t — stated by XCMG as more than 7% above comparable machines.
• Wide working range: 10.8–42 m five-section main boom, 9 m fixed jib and up to 51 m combined boom length.
• Efficient power: the standard version uses a 221 kW Weichai engine, 3 km/h travel speed and 140 m/min hoist speed.
• Economical transport: transport width under 3 m and maximum single-piece transport weight of 30 t.
• Site adaptability: graded counterweight lifting and small-angle lifting for muddy or low-clearance working areas.

The manufacturer describes this model as one of the industry’s best-selling telescopic crawler cranes. That statement is a manufacturer marketing claim.

Version Comparison

Parameter	XGTC30L5 Weichai	XGTC30L5 Yuchai	XGTC30L5-E Electric
Max. rated lifting capacity (main boom)	30 t	30 t	30 t
Fixed jib / boom-head pulley	3 t / 3 t	3 t / 3 t	3 t / 3 t
Max. lifting moment	1,182.5 kN·m	1,210 kN·m	1,182.5 kN·m
Main boom	10.8–42 m (5 sections)	10.8–42 m (5 sections)	10.8–42 m (5 sections)
Fixed jib length	9 m	9 m	9 m (1 section)
Engine / motor	Weichai WP7	Yuchai	Permanent-magnet synchronous motor
Rated power	221 kW	147 kW	150 kW / 1,685 rpm
Emission standard	Non-road China IV	Non-road China IV	Zero emission (battery electric)
Average ground pressure	0.06 MPa	0.06 MPa	0.06 MPa
Gradeability	45%	45%	45%
Max. single transport piece	30 t	30 t	—
Max. transport piece (L×W×H)	13.4 × 3 × 3.12 m	13.4 × 3 × 3.12 m	—
Operating weight	—	—	42.8 t

Electric Version

The XGTC30L5-E uses a 229 kW·h battery with pure-electric drive for zero emissions and low noise. The electric motor includes automatic start-stop, and the machine supports fast-charging solutions.

Export Version (XCMG Indonesia Data)

Parameter	Value
Payload	41,500 kg
Rated engine power	176 kW @ 2,000 rpm
Boom length	10.8–42 m
Max. rated load moment	1,182.5
Max. rated lifting capacity	30,000 kg
Max. rope speed	140 m/min
Average ground pressure	0.06 MPa

The export engine rating differs from the domestic Weichai (221 kW) and Yuchai (147 kW) versions, so the engine configuration must be confirmed for each market.

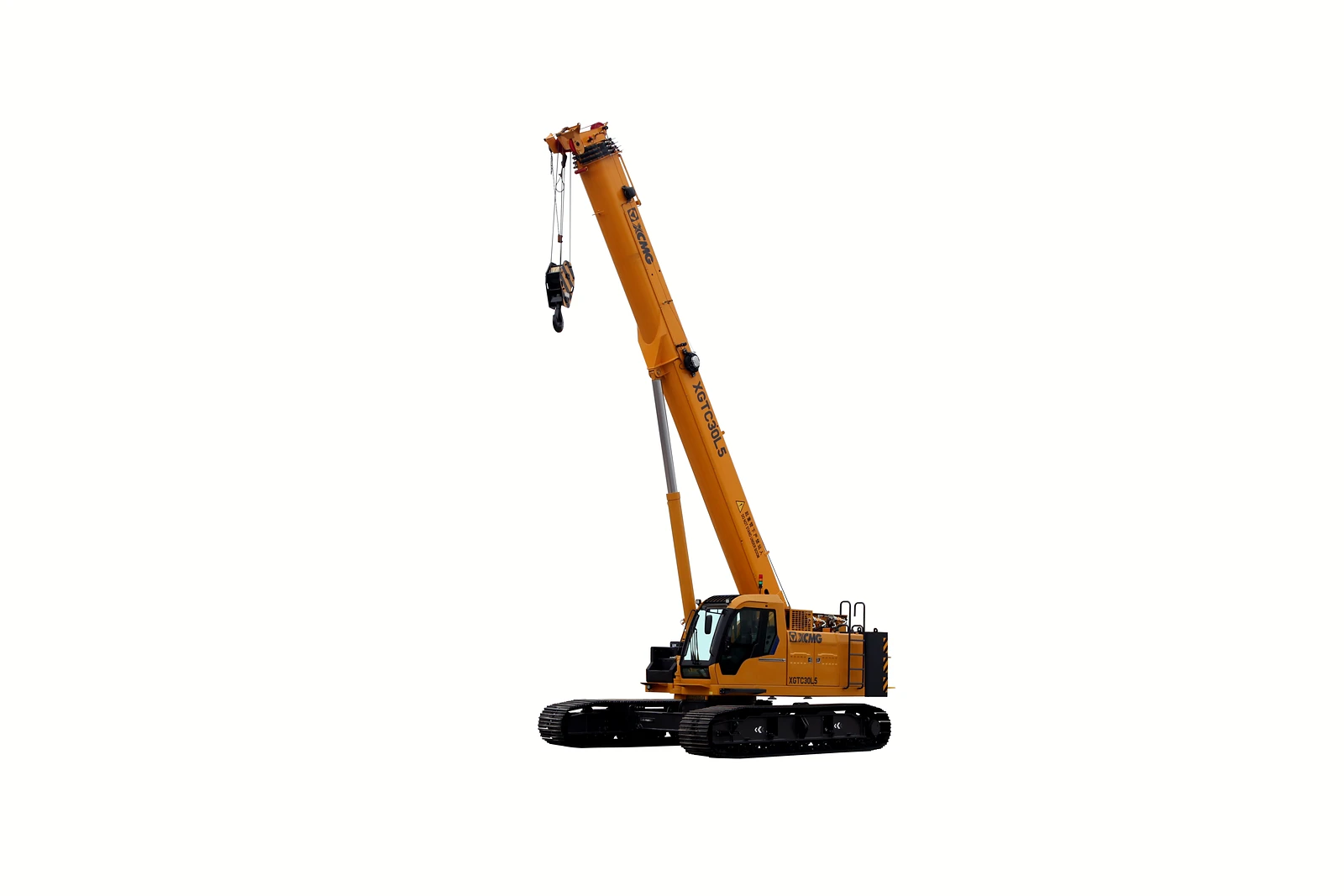

Yuchai Version

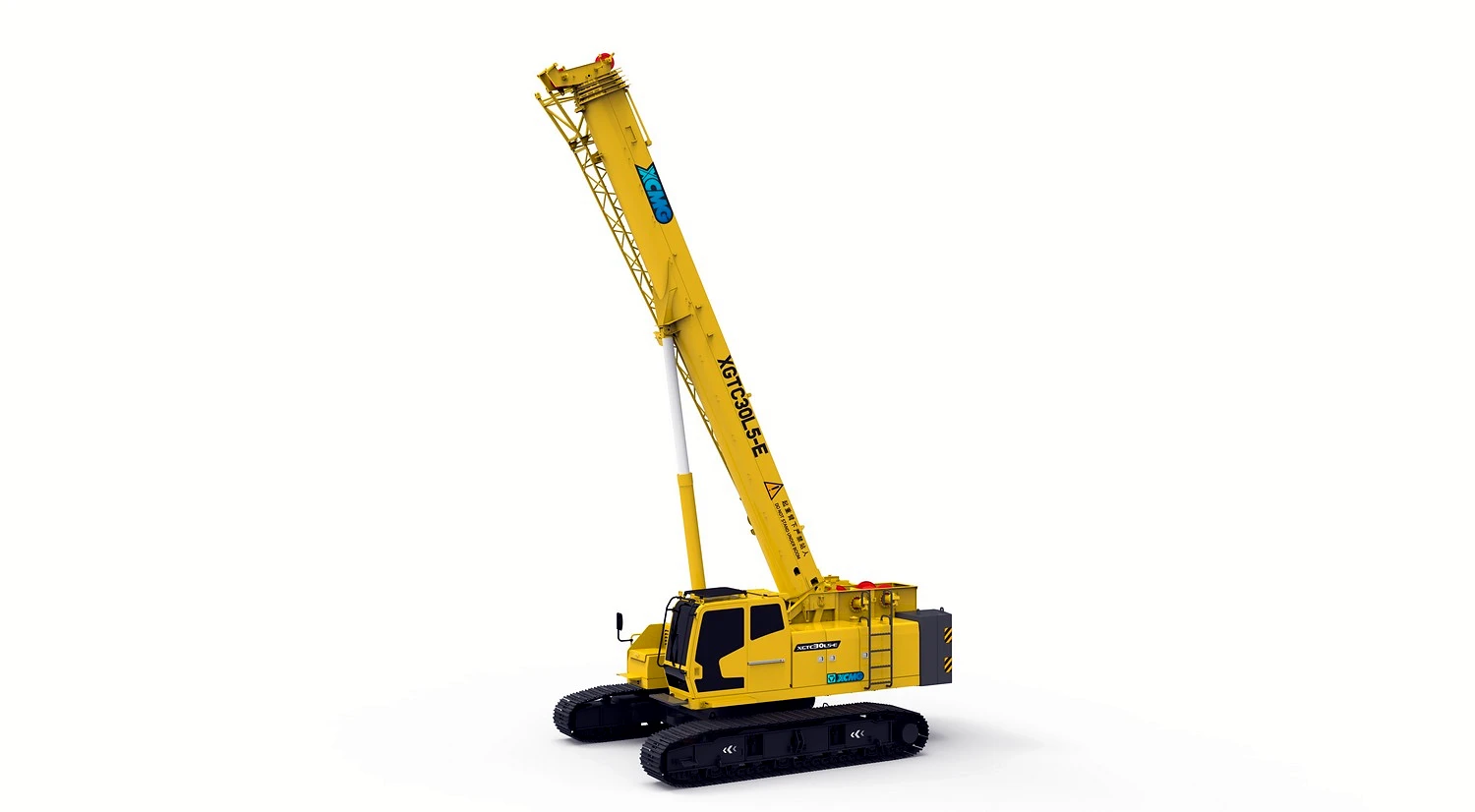

Electric Version

Applications

Plant and factory construction, bridge erection, reinforcement-cage lifting, municipal construction, foundation work and lifting on soft or restricted sites.

Data Source

Specifications are compiled from XCMG China product pages (Weichai, Yuchai and electric versions), plus XCMG Indonesia and Global export pages. Different batches, configurations and export versions may vary; confirm the final specification against the official product manual before quotation.

Images and specifications are provided by XCMG for reference. Verify the engine version, lifting charts and transport dimensions with the factory datasheet, nameplate and sales contract before purchase.
