XCMG XE75GA Mini Excavator

Overview

The XCMG XE75GA is a 7.7-ton compact crawler hydraulic excavator developed for jobs where versatility and maneuverability matter. It is widely used in municipal works, transportation projects, gardening and landscaping, farmland renovation and oil-pipeline construction.

The machine combines a customized Kubota turbocharged engine, responsive hydraulics and a well-appointed cab. Its smooth compound movements and easy operation help operators work efficiently in confined urban sites as well as open rural jobs.

Key Features

• Kubota V2607 turbocharged engine — fast engine response, low noise and low energy consumption.
• 0.33 m³ standard earthmoving bucket matched to a 3,720 mm boom and 1,622 mm arm.
• Standard dozer blade with 385 mm height and 2,250 mm width for backfilling and leveling.
• OPG and ROPS standard cab meeting ISO 10262 and ISO 12117-2 for operator protection.
• Industry-leading maneuverability for its size, with smooth movement and good coordination of compound operations.
• Comfortable air-conditioned cab, refined sheet-metal detailing and optimized hose routing.

Engine

Parameter	Value
Engine brand/model	Kubota V2607
Rated power / speed	42.4 kW @ 2,000 rpm
Maximum torque / speed	222.5 N·m @ 1,400–1,800 rpm
Type	4-stroke, water-cooled, direct injection, turbocharged
Cylinders	4
Bore × stroke	87 mm × 110 mm
Displacement	2.615 L

Performance

Parameter	Value
Travel speed (high/low)	4.3 / 2.5 km/h
Swing speed	11 r/min
Maximum swing torque	23 kN·m
Gradeability	35° (70%)
Ground pressure	33.5 kPa
Bucket digging force (ISO)	57 kN
Arm digging force (ISO)	38 kN
Maximum traction force	68.3 kN

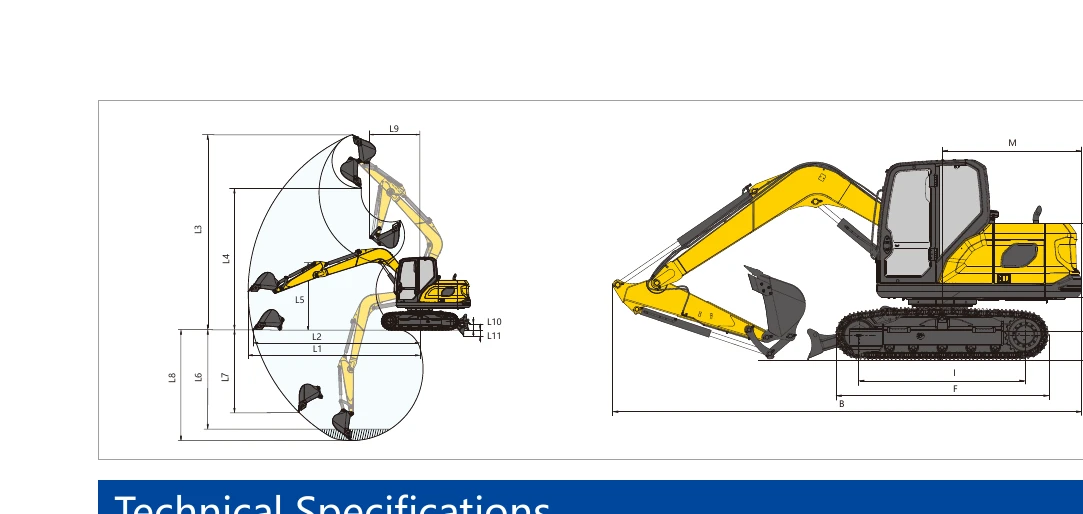

Working Range

Values apply to the standard 3,720 mm boom, 1,622 mm arm and 0.33 m³ bucket.

Ref.	Parameter	mm
L1	Maximum digging reach	6,260
L2	Maximum digging reach at ground level	6,070
L3	Maximum digging height	7,085
L4	Maximum unloading height	5,160
L5	Minimum unloading height	2,476
L6	8 ft. level-floor digging depth	3,628
L7	Maximum vertical digging depth	2,960
L8	Maximum digging depth	4,020
L9	Minimum swing radius	1,818
L10	Maximum lifting height of dozer blade	440
L11	Maximum cutting depth of dozer blade	445

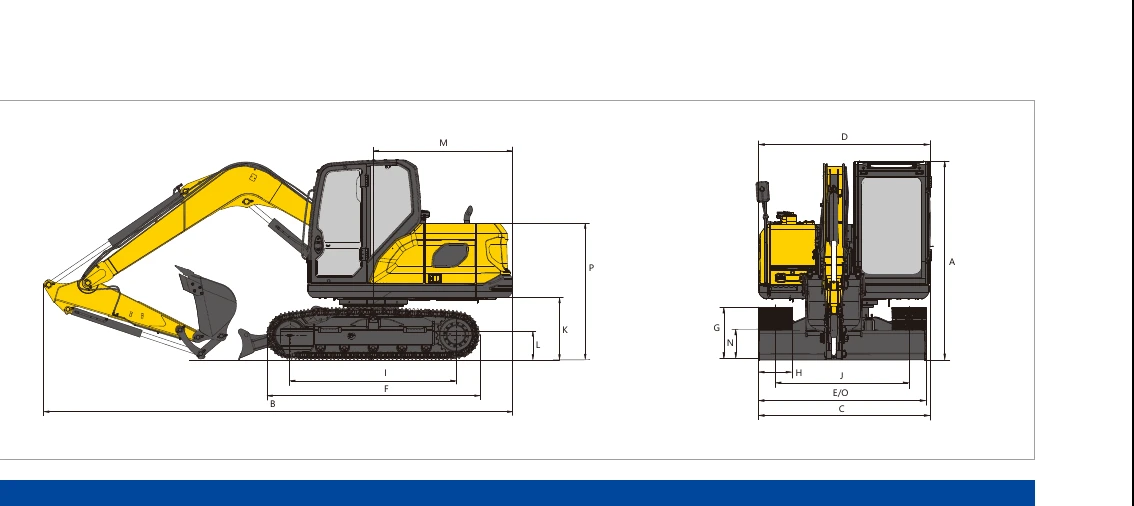

Overall Dimensions

Ref.	Dimension	mm
A	Overall height	2,779.5
B	Overall length	6,185
C	Overall width	2,265
D	Upper-structure width	2,260
E	Chassis width	2,250
F	Track length	2,825
G	Track height	696
H	Standard track shoe width	450
I	Track wheelbase	2,195
J	Track gauge	1,800
K	Counterweight ground clearance	813
L	Minimum ground clearance	385
M	Tail swing radius	1,840
N	Dozer blade height	385
O	Dozer blade width	2,250
P	Hood height	1,800

Hydraulic System and Undercarriage

Parameter	Value
Main pump	1 × piston pump
Main system flow rate	163.8 L/min
Main system pressure	28.4 MPa
Pilot system pressure	3.7 ± 0.2 MPa
Travel system pressure	28.4 MPa
Swing system pressure	23.5 MPa
Track shoes (per side)	39
Track rollers (per side)	5
Track carrier rollers (per side)	1
Cab standard	OPG per ISO 10262, ROPS per ISO 12117-2

Fluid Capacities

Fluid	Capacity
Fuel tank	170 L
Hydraulic oil tank	76 L

Applications

Municipal construction and maintenance, transportation projects, gardening and landscaping, farmland renovation, oil-pipeline construction, utility work, pipe laying and small demolition.

Brochure

Download the XE75GA hydraulic excavator brochure (PDF) for the full specification tables.

Specifications above follow the XCMG XE75G English brochure and are shown for reference. Figures may differ by market, engine-emission level and optional equipment, and the XE75GA configuration should be confirmed with the official factory datasheet before quotation.
