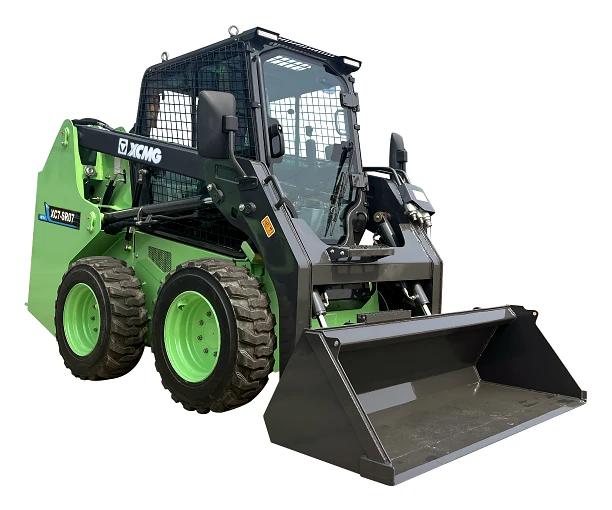

XCMG XC7-SR07EV Electric Skid Steer Loader

Overview

The XCMG XC7-SR07EV is a fully electric skid steer loader built on an 80 V LFP battery platform. XCMG lists it under the XC7 skid-steer family alongside the diesel XC7-SR07B, and positions it for work in roads, buildings, ports and mining — anywhere a compact, zero-emission loader with quick attachment changes is needed.

The machine uses dual permanent-magnet synchronous travel motors with integrated reducer braking, an electronically controlled working-hydraulic system and a battery pack designed for convenient swap-out. XCMG states that performance is close to its diesel counterpart while adding low noise and zero exhaust emissions on site.

Core Specifications (China Configuration)

The XCMG China page publishes only these five rows. All other values are listed separately below with their sources.

Parameter	Value
Rated load	910 kg
Operating weight	3,150 kg
Max. breakout force	21.5 kN
Max. tractive force	25 kN
Max. operating height	3,800 mm

Additional Published Parameters (XCMG Overseas Site)

The following rows come from XCMG’s own overseas product page (xcmg.co) for the same model:

Parameter	Value
Bucket capacity	0.45 m³
Travel motor power	8.5 × 2 kW (permanent-magnet synchronous)
Hydraulic motor power	15 kW
Wheelbase	1,079 mm
Overall dimensions (L×W×H)	3,410 × 1,800 × 1,960 mm

Battery capacity, charging time, travel speed and tipping load are not published on either XCMG page; dealer listings give 35 kWh LFP, 14 km/h and a 1,794 kg tipping load, but these figures have not been verified against XCMG official data and should be confirmed at order time. One dealer source also lists the operating weight as 2,951 kg against the official 3,150 kg; the official figure is used here and the two have not been merged.

Key Features

XCMG groups the XC7-SR07EV’s selling points into six areas.

Powertrain

• Large-capacity lithium iron phosphate (LFP) battery: higher energy density than lead-acid and better safety than NMC chemistry.
• BMS battery management with charge/discharge optimisation, fast-charging support, extended battery life, system self-check and remote monitoring.
• Battery reserved for convenient replacement; the machine carries both fast-charge and slow-charge connectors, with an on-board charger fitted as standard.
• Dual-motor travel drive with permanent-magnet synchronous motors and reducers; integrated reducer braking delivers strong braking performance.

Hydraulics

• Permanent-magnet synchronous pump motor with strong overload capability and reliability.
• Electronically controlled working-hydraulic system for responsive, precise operation.
• Low-noise gear pump; high-strength hydraulic hoses throughout.
• Proportional, infinitely adjustable auxiliary flow with lockable flow at any level, supporting high-flow attachments.

Working Equipment

• Bucket wear areas made from high-strength wear-resistant steel plate.
• Dust-proof, built-in front boom pivot; upper cross-member protects the tilt cylinder.
• Lightweight linkage design with high-lift-capacity arms and high-strength pins throughout.

Frame

• Balanced chassis layout with reinforced load-bearing zones for torsion and impact loads.
• Sprocket drive housings on both sides integrated into the frame for a compact, robust structure.

Cab

• ROPS and FOPS combined cab meeting safety standards.
• Mechanically suspended seat with multi-angle adjustment; optimised air ducts, stable temperature control, windscreen defrosting and foot heating.
• XCMG C-series family styling with a spacious interior, good visibility, reachable controls and operator safety measures.

Serviceability & Versatility

• One-piece cab and footwell design; the cab tilts back at a large angle and the upper rear cover opens fully for one-stop maintenance access.
• Few maintenance points, all placed within easy reach; remote fault-code reading, diagnostics, over-the-air program updates and real-time machine monitoring.
• Wide attachment choice: enclosed sweeper, forks, 4-in-1 bucket, auger, breaker, snow plough, auger extension, grass grab, manure pusher, hook and more.

Applications

Road works, building construction, ports and mining — and, with the attachment range above, landscaping, livestock handling, municipal services and indoor or enclosed-space work where zero emissions and low noise are required.

Data Source

XCMG official China product page: XC7-SR07EV and the XCMG overseas product page on xcmg.co, fetched on 2026-10-07, with the official XC7-SR07EV brochure PDF. Figures from dealer listings are noted as such and not merged with official data.

Specifications and configurations may vary depending on options, batch and regional regulations. XCMG reserves the right to make changes without prior notice; final figures must be confirmed after order placement.
