XCMG XE135F Forestry Excavator

Overview

The XCMG XE135F is a 17.7-ton forestry excavator built for soft-ground timber and forest-site work. It combines an Isuzu BB-4BG1 engine, a 20-ton-class undercarriage and 960 mm wide single-grouser forestry tracks, giving it strong traction and better passability in muddy forest terrain.

XCMG positions the XE135F for forestry operations such as gathering, stacking, loading and unloading, with emphasis on high efficiency and fuel economy.

Core Specifications

Parameter	Value
Operating weight	17,700 kg
Rated power / speed	72.7 kW @ 2,200 rpm
Engine model	ISUZU BB-4BG1
Standard bucket capacity	0.52 m³ reinforced bucket
Maximum grab radius	8,175 mm
Maximum grab depth	5,120 mm
Maximum grab height	8,875 mm
Maximum traction force	190 kN
Travel speed (high / low)	4.4 / 2.6 km/h
Gradeability	70% (35°)
Ground pressure	25.2 kPa

Engine

Parameter	Value
Engine model	ISUZU BB-4BG1
Rated power / speed	72.7 kW @ 2,200 rpm
Maximum torque / speed	337.6 N·m @ 1,600 rpm
Displacement	4.329 L
Cylinders	4
Type	Direct injection, 4-stroke, water-cooled, turbocharged

Working Device

Parameter	Value
Boom length	4,600 mm
Arm length	2,520 mm
Bucket capacity	0.52 m³ reinforced bucket
Maximum grab height	8,875 mm
Maximum grab depth	5,120 mm
Maximum grab radius	8,175 mm
Minimum swing radius	2,366 mm

Dimensions

Parameter	Value
Overall length	7,730 mm
Overall width	3,000 mm
Overall height	3,254 mm
Turntable width	2,690 mm
Track length	3,845 mm
Chassis overall width	3,000 mm
Track shoe width	960 mm
Track wheelbase	2,980 mm
Track gauge	2,040 mm
Counterweight ground clearance	1,260 mm
Minimum ground clearance	650 mm
Tail swing radius	2,330 mm

Performance and Hydraulics

Parameter	Value
Travel speed (high / low)	4.4 / 2.6 km/h
Swing speed	12.1 r/min
Maximum swing torque	36.8 kN·m
Gradeability	70% (35°)
Ground pressure	25.2 kPa
Maximum traction force	190 kN
Main pump	2 × variable pump
Pilot pump	1 × gear pump
Main system maximum flow	2 × 133 L/min
Main system pressure	34.3 MPa
Main system boost pressure	37 MPa
Pilot system pressure	3.9 MPa
Travel system pressure	34.3 MPa
Swing system pressure	24 MPa

Fluid Capacities

Fluid	Capacity
Fuel tank	250 L
Hydraulic oil tank	130 L
Urea tank	Not specified

Key Features

• Forestry-ready undercarriage: 20-ton-class chassis, 960 mm wide single-grouser high-tooth tracks and a large-torque travel motor for muddy forest ground and climbing.
• Fuel-efficient powertrain: XCMG states that the Isuzu BB-4BG engine and large pump/valve configuration reduce engine speed into the fuel-economy zone, cutting energy use by more than 20% versus the previous generation.
• Strong traction: maximum traction force is listed at 190 kN, which XCMG describes as the highest in its class.
• Full-body forestry guarding: cab and body protection is designed to protect the operator and machine during forestry work.
• Hydraulic efficiency: double-pump constant-power negative-flow system, world-renowned main valve and instantaneous boost function for varied working conditions.
• Cooling and dust protection: advanced cooling system, plus dust-prevention nets for the engine and radiator.

Applications

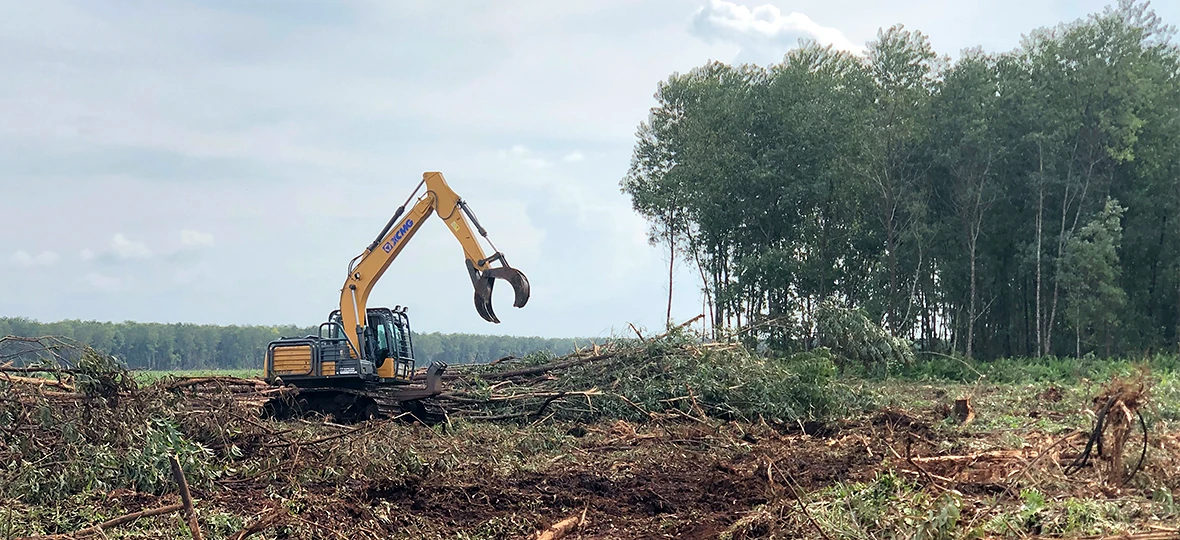

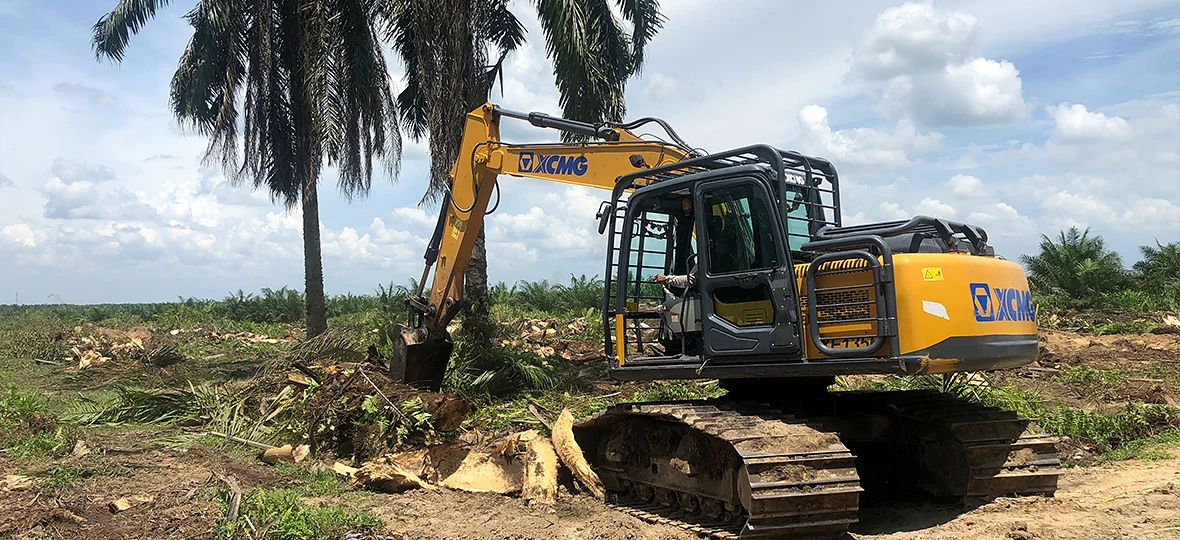

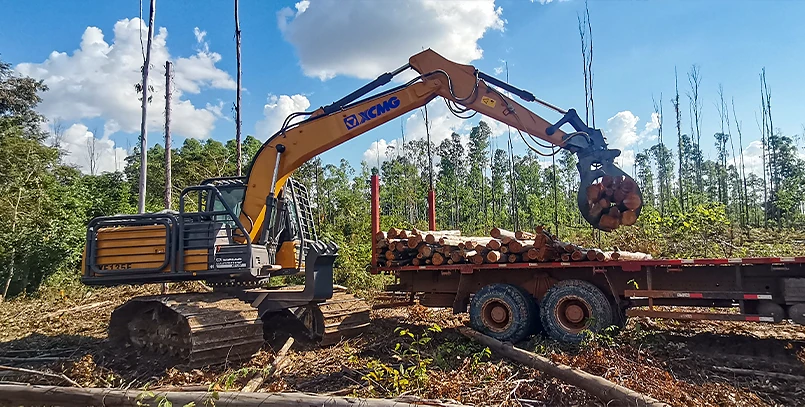

Forestry gathering, stacking, loading and unloading, forest-road construction, soft-ground excavation, timber-site handling and other forestry-specific operations.

Data Source

XCMG official China product page: XE135F, fetched on 2026-10-05. Additional specifications follow the XCMG official XE135F brochure dated 2025-05-21 and the XCMG global product page: XE135F.

The China page and brochure list the operating weight as 17,700 kg, while the global page lists 17,500 kg. The engine is listed as ISUZU BB-4BG1 on the China page and brochure, and ISUZU BB-4BG1TRP on the global page. This page uses the China page and brochure as the primary source.

Specifications follow the XCMG official pages and may vary by batch and configuration. Final configuration and figures must be confirmed after order placement.
