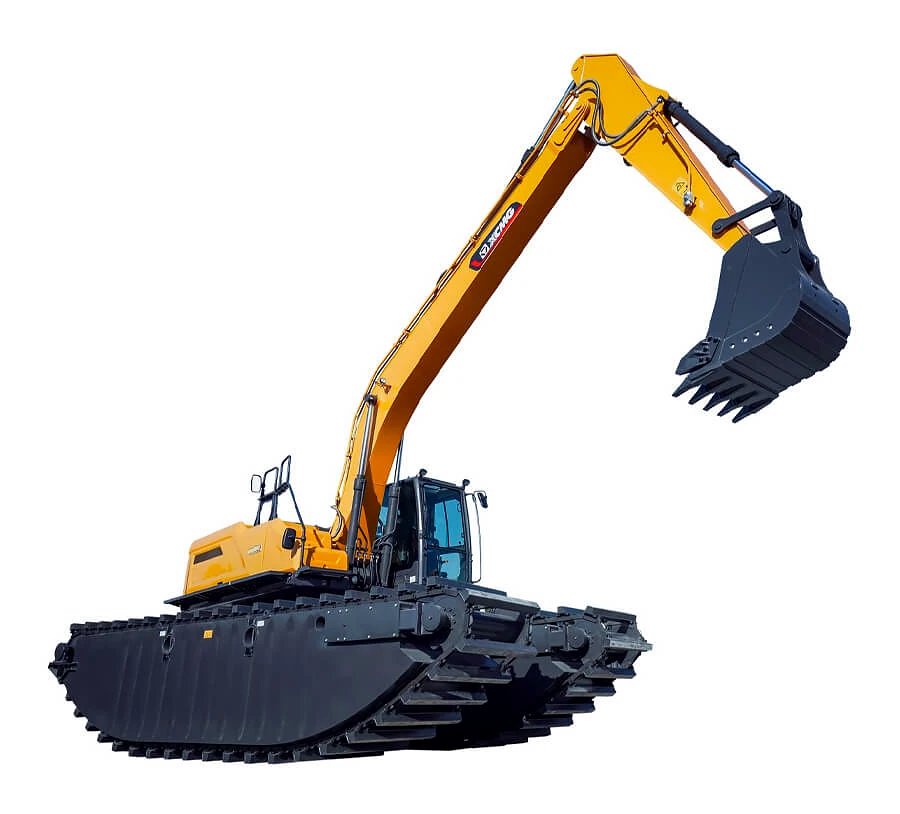

XCMG XE220GS Amphibious Excavator

Overview

The XCMG XE220GS is a 30.8-ton amphibious excavator for swamp, wetland, river, lake and coastal work. Its extended undercarriage, hollow pontoon structure and twin-row chain design give it very low ground contact pressure and safe travel in shallow water, with a maximum working water depth of 1.5 m.

XCMG positions the machine for soft-ground excavation, dredging, cleaning, land improvement and other duties where a standard crawler excavator would sink or lose traction.

Core Specifications

Parameter	Value
Operating weight	30,800 kg
Standard bucket capacity	0.85 m³
Engine model	Cummins QSF4.5TT
Rated power / speed	129 kW @ 2,200 rpm
Maximum digging reach	12,105 mm
Maximum digging depth	7,445 mm
Bucket digging force	119.5 kN
Arm digging force	83.5 kN
Maximum traction force	198 kN
Travel speed (high / low)	4 / 2 km/h
Gradeability	≤30%
Maximum working water depth	1.5 m

Engine

Parameter	Value
Engine model	Cummins QSF4.5TT
Rated power / speed	129 kW @ 2,200 rpm
Maximum torque / speed	745 N·m @ 1,200 rpm
Displacement	4.5 L
Cylinders	4
Type	Direct injection, 4-stroke, water-cooled, turbocharged, air-to-air intercooled

Working Device

Configuration	Boom	Arm	Bucket
Standard	7,160 mm	3,570 mm	0.85 m³
Optional	5,680 mm	2,710 mm	0.93 m³

Working Range

Parameter	Value
Maximum digging reach	12,105 mm
Maximum digging height	12,530 mm
Maximum dumping height	9,545 mm
Maximum digging depth	7,445 mm
Minimum swing radius	4,185 mm

Dimensions

Parameter	Value
Overall length	12,195 mm
Overall width	4,595 mm
Overall height	4,070 mm
Turntable width	3,495 mm
Track length	8,065 mm
Chassis overall width	4,595 mm
Standard track shoe width	1,300 mm
Track wheelbase	7,253 mm
Track gauge	2,900 mm
Counterweight ground clearance	1,985 mm
Minimum ground clearance	1,245 mm
Tail swing radius	3,480 mm
Track height	1,816 mm

Performance and Hydraulics

Parameter	Value
Travel speed (high / low)	4 / 2 km/h
Swing speed	12.5 r/min
Gradeability	≤30%
Ground pressure, hard ground / swamp	28.1 / 14.5 kPa
Main pump	2 piston pumps
Main pump rated flow	2 × 218 L/min
Main relief valve pressure	34.3 MPa
Travel system pressure	34.3 MPa
Swing system pressure	28 MPa
Pilot system pressure	3.9 MPa

Fluid Capacities

Fluid	Capacity
Fuel tank	1,300 L
Hydraulic oil tank	150 L
Engine oil	14 L

Key Features

• Amphibious undercarriage: hollow pontoon structure, twin-row chain design and very low ground contact pressure for swamp and shallow-water travel.
• Extended working device: XCMG states that the new-generation working device is 30% longer, giving a 12,105 mm maximum digging reach.
• Long runtime: an innovative auxiliary fuel tank doubles volume, and an electric diesel pump transfers fuel quickly to the main tank.
• Higher stability: moving the counterweight rearward is stated to improve stability by 18%.
• Soft-ground capability: track contact area is 4–5 times that of a standard excavator.
• Service access: walkways around the turntable make maintenance easier.

Applications

Wetland excavation, swamp and soft-ground earthmoving, river and lake dredging, coastal cleanup, drainage-channel maintenance, land improvement and shallow-water construction.

Data Source

XCMG official China product page: XE220GS, fetched on 2026-10-05. Additional specifications follow the XCMG official XE220GS brochure dated 2023-03-04.

A legacy XCMG page for the same model lists 229 kW engine power and leaves operating weight blank. That page conflicts with both the current page and the official brochure, which list 129 kW and 30,800 kg; the conflicting legacy values are not used.

Specifications follow the XCMG official pages and may vary by batch and configuration. Final configuration and figures must be confirmed after order placement.
