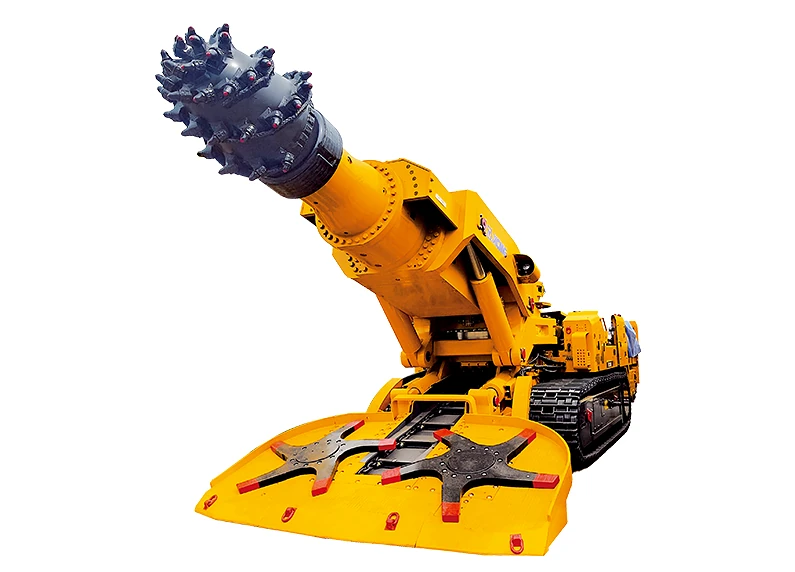

XCMG EBZ280E Roadheader

Overview

The XCMG EBZ280E is an intelligent boom-type roadheader in XCMG’s EBZ series, which is widely used in coal mines, highway tunnels and water-conservancy culverts. The EBZ series provides intelligent assisted excavation with a freely defined cutting section for safe, efficient driving, and is used for coal roadway, semi-coal rock roadway, soft rock roadway and tunnel excavation.

Main Specifications

Item	Value
Operating weight	96 t
Overall length	12,360 mm
Shovel plate width	3,600 mm
Body width	3,100 mm
Height at highest point of cutter head (horizontal)	2,720 mm
Body height	2,080 mm
Floor cutting depth	250 mm
Cutting envelope height	5,600 mm
Cutting envelope width	6,600 mm
Gradeability	±16°
Tramming speed	0–4 / 6 m/min
Ground pressure	0.14 MPa
Total installed power	440 kW
Cutting motor power	280 / 220 kW
Pump station motor power	160 kW
Supply voltage	AC 1,140 V
Cutter head speed	54 / 27 r/min
Track width	850 / 720 mm
External spray water pressure	≥ 4 MPa
Internal spray water pressure	≥ 2 MPa
Largest non-removable part	3.92 × 1.5 × 1.76 m
Largest non-removable part weight	10.9 t

Key Features

• Intelligent roadway driving — remote visualised centralised operation for the operator, low-latency data transmission, precise machine pose detection with active correction, and digital definition and precise shaping of the cutting profile.
• Easier maintenance — centralised lubrication at key points, an externally mounted shovel-plate pivot pin and an intelligent electrical control box.
• Strong coal and rock cutting — adaptive cutter heads matched to different rock types, covering coal, semi-coal rock and full-rock roadways.
• Wide slope capability — assisted traction with high-tooth track pads for roadway work on gradients up to ±28°.
• Adaptable to working conditions — shovel plates in different widths and drives to suit roadways of various widths.

Applications

Coal roadway, semi-coal rock roadway, soft rock roadway and tunnel excavation.

Data Source

XCMG official product pages: EBZ280E (China site) and EBZ280E (global site), fetched on 2026-10-04.

Specifications follow the XCMG official pages and may vary by batch and configuration. Final configuration and figures must be confirmed after order placement.
