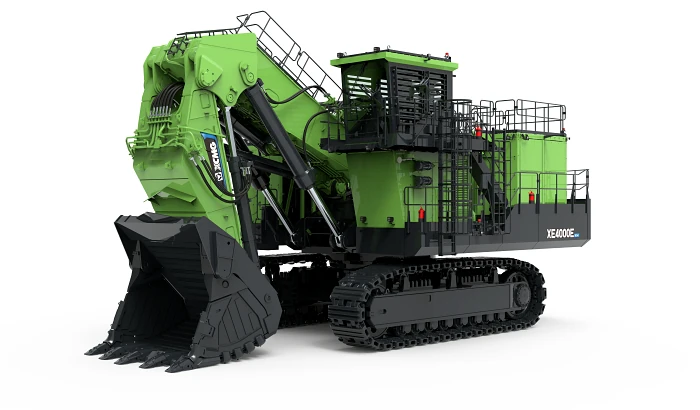

XCMG XE4000E Electric Mining Excavator

Overview

The XCMG XE4000E is a 400-ton class electric mining excavator. The boom, stick, slewing platform and undercarriage are all post-weld stress-relief annealed, and the machine has been proven in coal mines and metal ore operations. It uses a 6,000 V high-voltage motor with a pure-electric drive system, and XCMG positions it around high availability, high productivity and low whole-life cost.

Main Specifications

Item	Value
Operating weight	380,000 kg
Bucket capacity	15–23 m³
Rated power / speed	1,200 kW / 1,786 rpm (60 Hz) – 1,486 rpm (50 Hz)
Maximum digging depth	4,360 mm
Bucket digging force	1,190 kN
Overall dimensions	16,185 × 9,070 × 9,220 mm

Key Features

• High-end components — core components use globally proven suppliers, giving high reliability, efficient working, low energy consumption, a high level of intelligence and easy maintenance.
• Lower running cost — the 6,000 V high-voltage motor and electric drive cut energy cost by more than 30% compared with a diesel engine (XCMG figure).
• Advanced hydraulic control — an electronically controlled positive-flow strategy gives faster response and smooth, fluid compound movements.
• Monitored hydraulics — multiple sensors monitor the hydraulic system for preventive maintenance of the main components, and hydraulically tensioned tracks absorb travel shock to extend track life.
• Intelligent monitoring — fault self-diagnosis, central filling and central lubrication systems, plus a range of safety devices.
• Operator comfort — a large, FOPS-protected positive-pressure cab with multi-point damping for a spacious, clean, safe and comfortable workplace.
• Modular design — the machine is built in modules for easier relocation.

Manufacturer Highlights

XCMG quotes an availability of more than 94% and a reduction of more than 40% in consumable-parts cost, and lists optional 22–23 m³ rock buckets.

Applications

Coal-mine stripping, metal-mine mining and large-scale earth and rock loading.

Data Source

XCMG official product pages: XE4000E (global site) and XE4000E (China site), fetched on 2026-10-04.

Specifications follow the XCMG official pages and may vary by batch and configuration. Final configuration and figures must be confirmed after order placement.
