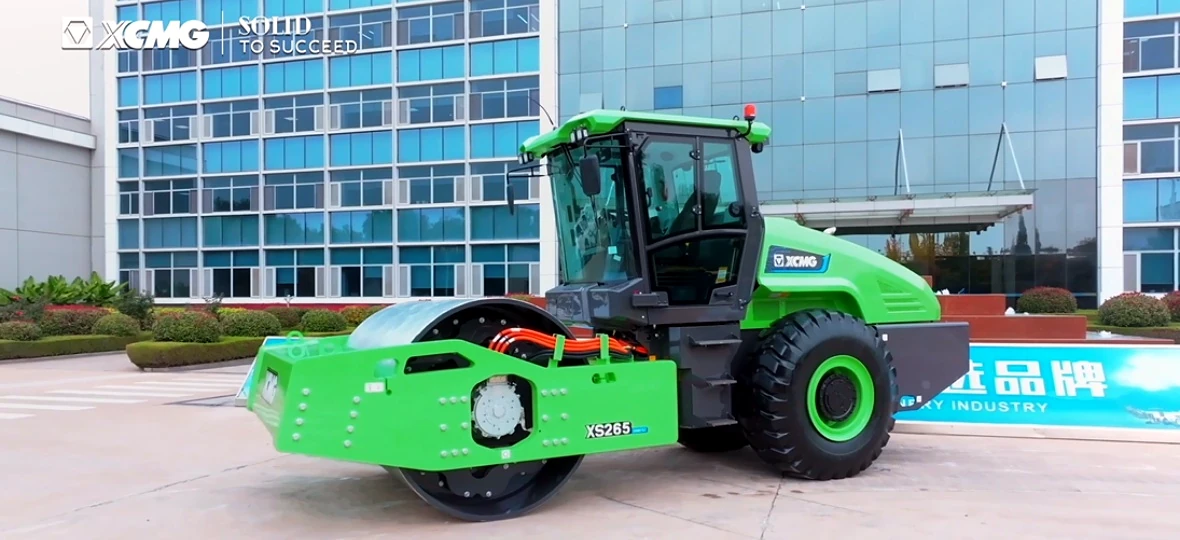

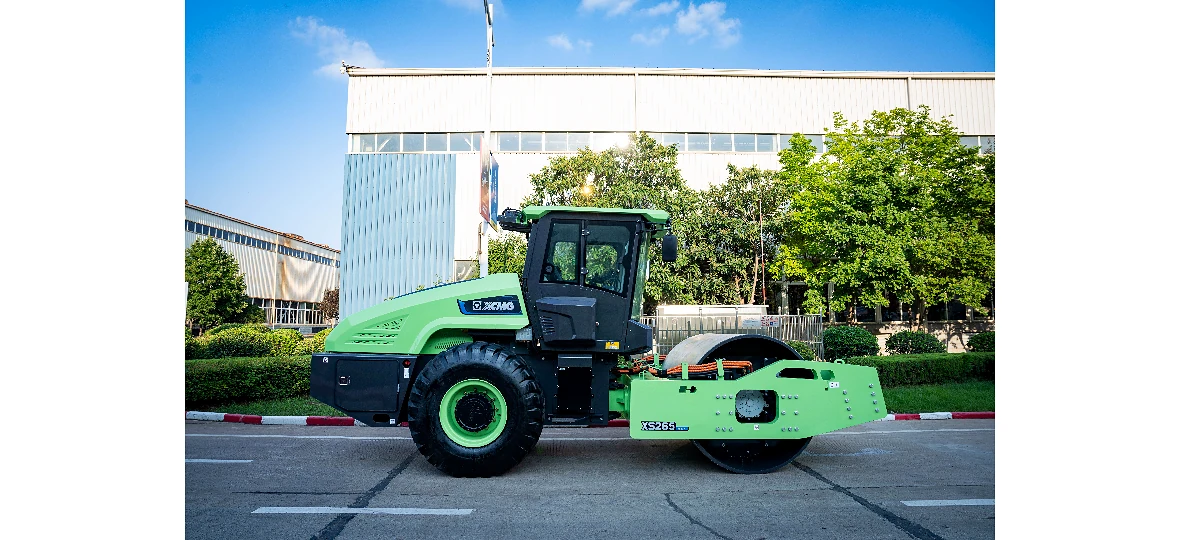

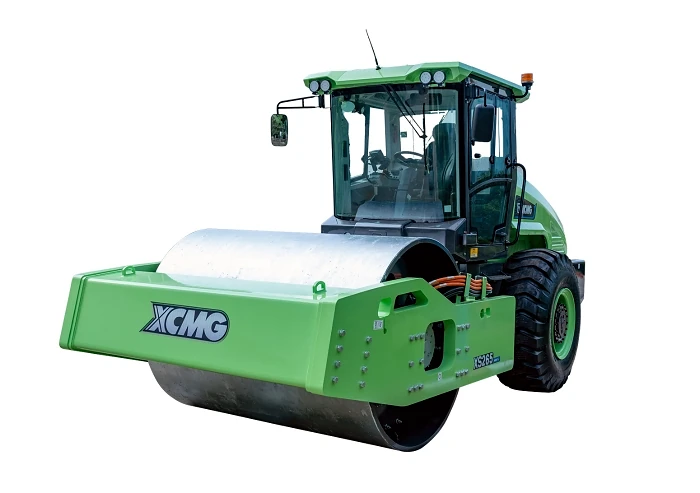

XCMG XS265HEV Hybrid Single-Drum Roller

Overview

The XCMG XS265HEV is a 26-ton range-extender hybrid single-drum vibratory roller for base layers, sub-base layers and fill compaction. XCMG positions it for high-grade highways, airport runways, ports, dams and industrial construction sites.

The machine combines a small-displacement engine with a 100 kW range extender, a 30.37 kWh power battery and direct-drive electric motors for the drum and rear axle.

Core Specifications

Parameter	Value
Operating weight	26,000 kg
Static linear load	784 N/cm
Vibration frequency	27 / 32 Hz
Amplitude	2.05 / 1.05 mm
Centrifugal force	435 / 315 kN
Vibratory drum diameter × width	1,600 × 2,170 mm
Travel speed	0–10.9 km/h
Theoretical gradeability	40%
Ground clearance	490 mm
Steering angle	±33°
Range-extender power	100 kW
Power battery	30.37 kWh
Battery voltage	632.7 V

Hybrid Powertrain

Parameter	Value
Drive type	Range-extender hybrid, electric all-wheel drive
Range-extender power	100 kW
Power battery	30.37 kWh
Battery voltage	632.7 V
Drum drive	One motor direct-driving the vibratory drum
Rear-axle drive	One motor direct-driving the rear axle

XCMG states that the engine operates in its best fuel-consumption zone for high fuel savings and improved reliability. The direct-drive motors provide stepless speed variation, fast response and traction at both the drum and rear axle.

Compaction System

Parameter	Value
Drum diameter × width	1,600 × 2,170 mm
Vibration frequency	27 / 32 Hz
Amplitude	2.05 / 1.05 mm
Centrifugal force	435 / 315 kN
Static linear load	784 N/cm

Operating Environment

Parameter	Value
Maximum altitude	≤4,000 m
Ambient temperature	-15°C to +45°C
Travel speed	0–10.9 km/h
Theoretical gradeability	40%
Ground clearance	490 mm
Steering angle	±33°

Key Features

• Range-extender hybrid drive: a small-displacement engine and 100 kW range extender reduce fuel use while maintaining working power.
• Electric all-wheel drive: one motor directly drives the drum and one directly drives the rear axle for strong traction and gradeability.
• Stepless motor control: direct-drive motors provide smooth speed variation, fast response and high working efficiency.
• High compaction force: dual vibration settings deliver 27 / 32 Hz with 435 / 315 kN centrifugal force.
• Heavy-duty undercarriage: XCMG states that the domestic heavy-duty drive axle provides high load capacity and reliable operation.
• Wide operating range: suitable for use up to 4,000 m altitude and ambient temperatures from -15°C to +45°C.

Applications

High-grade highway base and sub-base compaction, airport runway construction, port facilities, dam construction, industrial sites and large material-fill projects.

Data Source

XCMG official China product page: XS265HEV, fetched on 2026-10-05. Additional parameters follow the XCMG global product page: XS265HEV.

The China page provides the 100 kW range-extender power. The global page provides amplitude, drum dimensions, travel speed, ground clearance, steering angle and battery voltage. Both official pages agree on 26,000 kg operating weight, 784 N/cm static linear load, 27/32 Hz vibration frequency and 435/315 kN centrifugal force.

Specifications follow the XCMG official pages and may vary by batch and configuration. Final configuration and figures must be confirmed after order placement.
