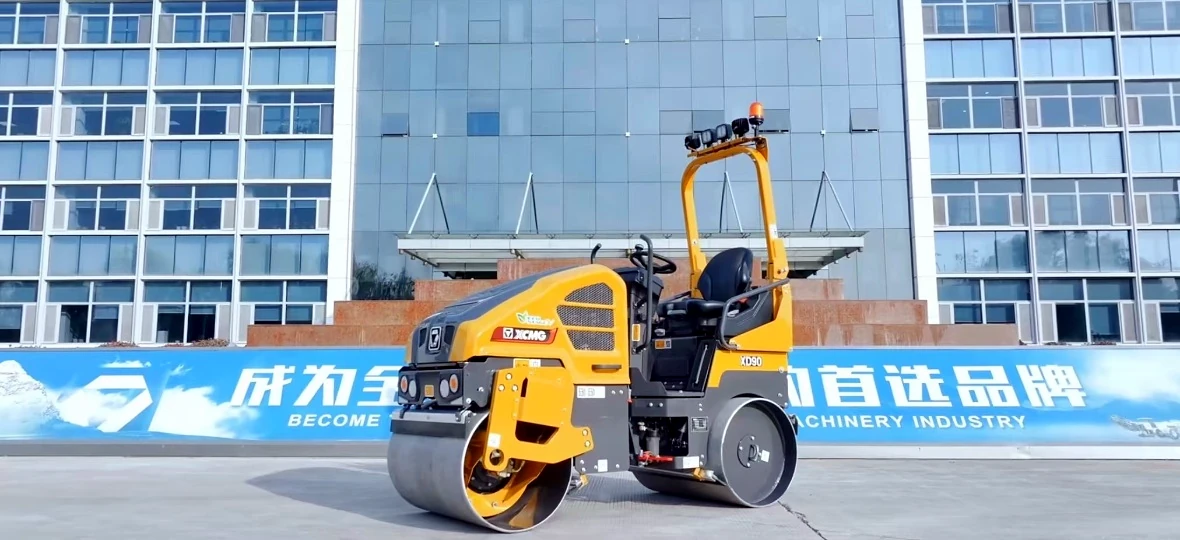

XCMG XD90 Light Tandem Roller

Overview

The XCMG XD90 is a 1.7-ton light tandem roller with dual-wheel drive and independent front and rear drum vibration. It is designed for new-road asphalt surface compaction, thin stabilized soil layers and municipal or highway maintenance work.

XCMG positions the machine for repair paving, confined urban sites and highway maintenance where compact dimensions, good visibility and low blind spots matter.

Core Specifications

The following values are taken from the current XCMG China product page.

Parameter	Value
Operating weight	1,700 kg
Static linear load	87 / 98 N/cm
Vibration frequency	46 / 63 Hz
Centrifugal force	10 / 18 kN
Theoretical gradeability	30%
Rated power	16.1 kW
Overall dimensions	2,250 × 980 × 2,475 mm

Global Export Specification

The global product page lists a slightly different vibration configuration, so it is shown separately rather than merged with the China specification.

Parameter	Value
Engine	Kubota
Rated power	16.1 kW
Emission standard	EU Stage V / T4F
Vibration frequency	45 / 62 Hz
Operating weight	1,700 kg
Working width	900 mm
Overall dimensions	2,250 × 980 × 2,475 mm
Foldable ROPS dimensions	2,350 × 980 × 1,580 mm

Key Features

• Dual drive and dual vibration: front and rear drums can vibrate independently for efficient compaction.
• High-frequency compaction: XCMG states that high and low vibration frequencies can be matched to travel speed and material type.
• Compact layout: small overall dimensions, a small blind area and good sightlines around the drums improve work in confined areas.
• 620 mm drum diameter: large-diameter drums improve passability and compaction quality.
• Maintenance-friendly operation: waterproof instrument panel and standard elbow rest make edge compaction easier.
• Kubota export engine: the global page lists a Kubota engine meeting EU Stage V / T4F emissions.

Applications

New-road asphalt surface compaction, thin stabilized soil layers, municipal road maintenance, highway custody, repair paving, sidewalks, parking areas and other confined maintenance work.

Data Source

XCMG official China product page: XD90, fetched on 2026-10-06. Additional specifications follow the XCMG global product page: XD90.

The China page lists 46 / 63 Hz and 10 / 18 kN, while the global page lists 45 / 62 Hz and does not provide centrifugal-force values. These appear to represent different domestic and export configurations and are retained separately. No public product brochure was exposed on the China page.

Specifications follow the XCMG official pages and may vary by batch and configuration. Final configuration and figures must be confirmed after order placement.
