XCMG XD140 Light Vibratory Roller

Overview

The XCMG XD140 (listed as XD140IV in XCMG’s expert review) is a 4.6-ton double-drive, double-vibration light roller. According to XCMG, it uses low amplitude and high frequency vibration with a large excitation force, and the front and rear drums can vibrate independently. It is intended mainly for asphalt surface compaction on newly built roads and for road maintenance, and can also compact thin stable-soil layers. The compact structure, high maneuverability, small blind spots and high operating comfort make it a suitable compaction machine for municipal maintenance and highway upkeep.

China Configuration — XD140 Family

The XCMG China site publishes a separate detail page for each variant of the XD140 family. The variants differ mainly in operating weight and rated power, so they are listed side by side rather than merged. Drum layout follows the official images of each variant.

Parameter	Unit	XD140	XD140VT	XD140SVT	XD140SIV
Operating weight	kg	4,600	4,600	4,000	4,300
Static linear load	N/cm	163	152	152	152/159
Vibration frequency	Hz	53/60	53/60	53/60	53/60
Excitation force	kN	42/53	42/53	42/53	42/53
Theoretical gradeability	%	30	30	30	30
Rated power	kW	36.8	36.8	34.1	33.6
Overall dimensions (L×W×H)	mm	2,910 × 1,515 × 2,940	2,910 × 1,515 × 2,940	2,910 × 1,515 × 2,940	2,910 × 1,515 × 2,940

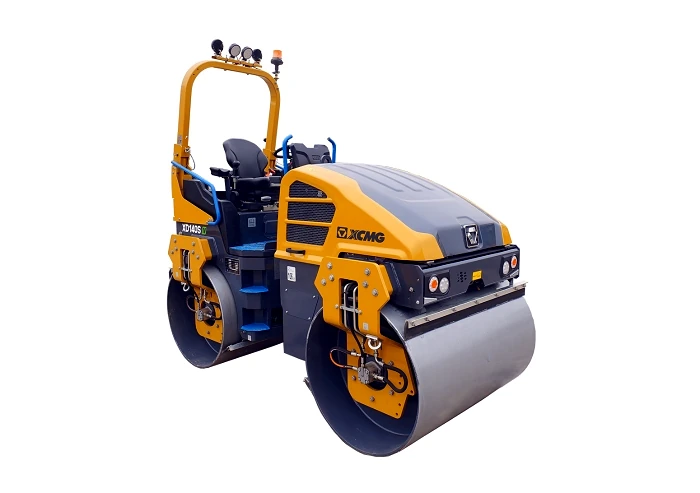

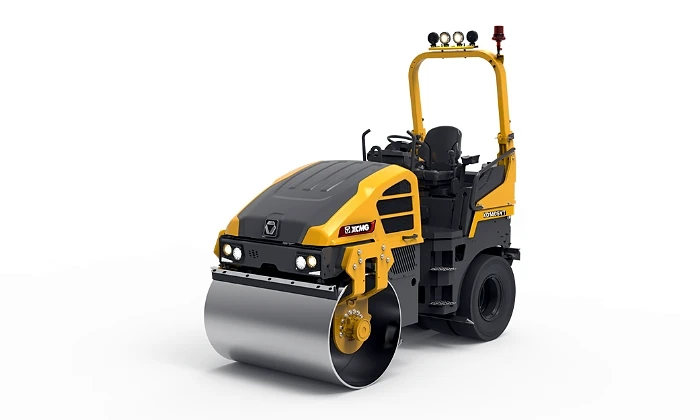

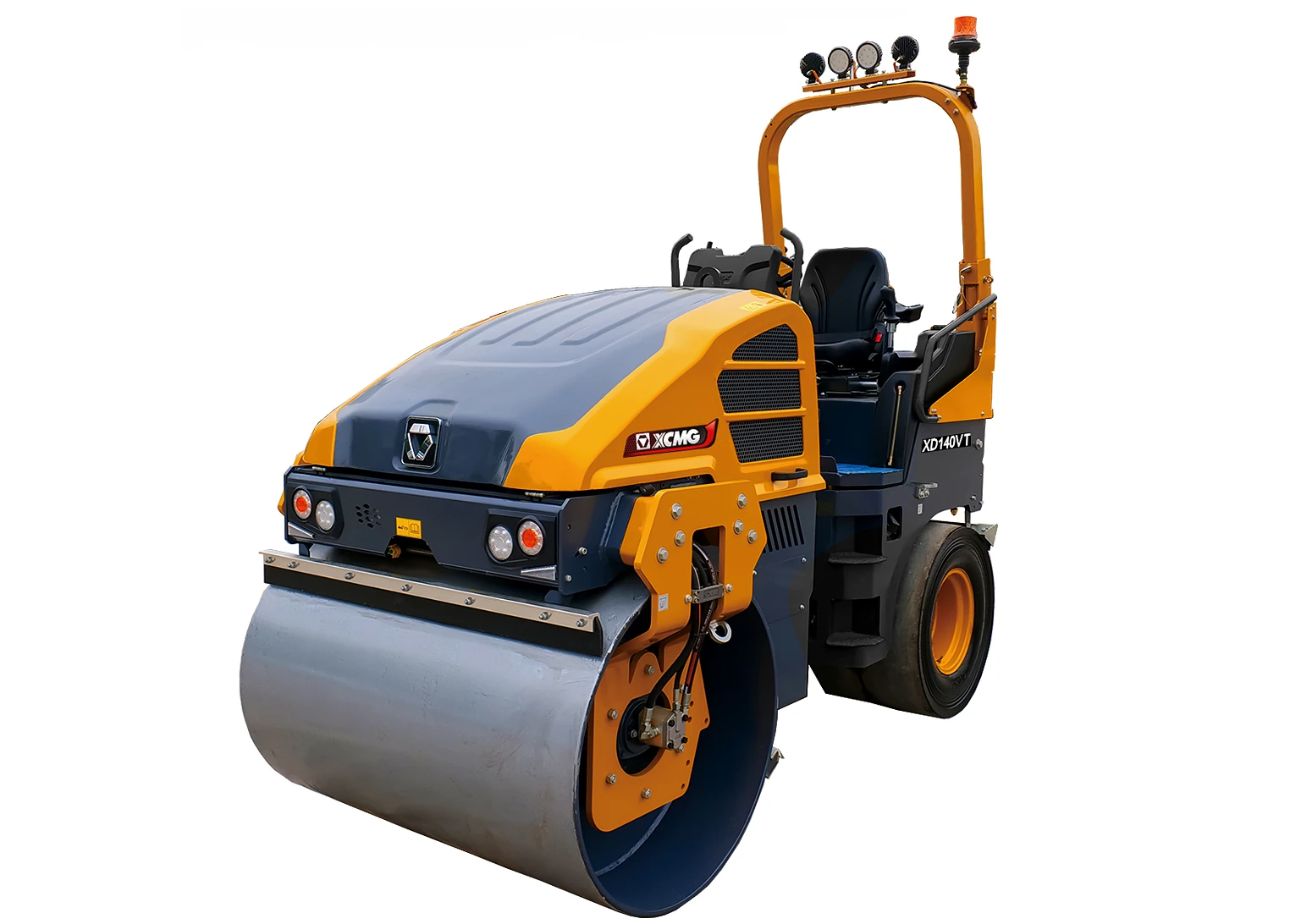

Drum layout	—	Double drum	Front drum + rear tires	Front drum + rear tires	Double drum

Note: the China pages do not publish the engine model, drum width or tank capacities, so these are left out rather than estimated.

Export Configuration

XCMG’s official e-commerce channel (machmall) lists the XD140 export unit with a more complete specification. Third-party export listings match these values.

Parameter	Value
Operating weight	4,300 kg (front/rear axle 2,100 / 2,200 kg)
Static linear load	152/160 N/cm
Operating speed	0–12 km/h
Gradeability	30%
Min. turning radius (inside/outside)	2,700 / 4,100 mm
Min. ground clearance	350 mm
Wheelbase	1,950 mm
Steering angle	±32°
Oscillation angle	±8°
Vibration frequency	53/60 Hz
Nominal amplitude	0.5 mm
Drum diameter	920 mm
Drum width	1,380 mm
Engine model	Kubota V2403
Rated power	33.6 kW @ 2,400 r/min

The official global brochure (VT XD140) adds system details for the export build: dual water tanks (235 L main + 45 L auxiliary) with level indicator and filters before the pump and nozzles, hydrostatic closed-loop drive with open-loop vibration, hydraulic service brake plus mechanical-hydraulic park and secondary brakes, articulated steering, and a central lifting device with an anti-fall mechanism for transport.

Version Differences

The China and export configurations differ, consistent with different engine and regulatory setups rather than a data conflict:

Item	China	Export
Operating weight	4,600 kg	4,300 kg
Rated power	36.8 kW (engine not published)	33.6 kW, Kubota V2403
Static linear load	163 N/cm	152/160 N/cm

Key Features

XCMG groups the XD140’s selling points into four areas:

• Safe and comfortable operation: dual-side walkways with ergonomic coloring, a spacious platform with generous legroom and a three-stage suspension seat.
• Efficient compaction: a dual-frequency, single-amplitude exciter provides two excitation-force settings for different job conditions, and 53/60 Hz high-frequency vibration combined with travel speed suits different materials.
• Strong mobility: a low-speed high-torque drive motor gives strong gradeability, and the large steering angle keeps the turning radius small.
• All-round visibility: the visibility design leaves the operator no blind spots; the compact layout keeps both drum edges in view, improving close-to-edge compaction, comfort and safety.

Applications

Asphalt surface compaction and road maintenance in municipal upkeep and highway maintenance; compaction of thin stable-soil layers.

Data Source

XCMG official China product pages: XD140, XD140VT, XD140SVT, XD140SIV, fetched on 2026-10-07. Export figures follow the XCMG machmall listing and the official global brochure PDF bundled with this listing; a third-party export listing matches the official values.

Specifications and configurations may vary depending on options, batch and regional regulations. XCMG reserves the right to make changes without prior notice; final figures must be confirmed after order placement.
