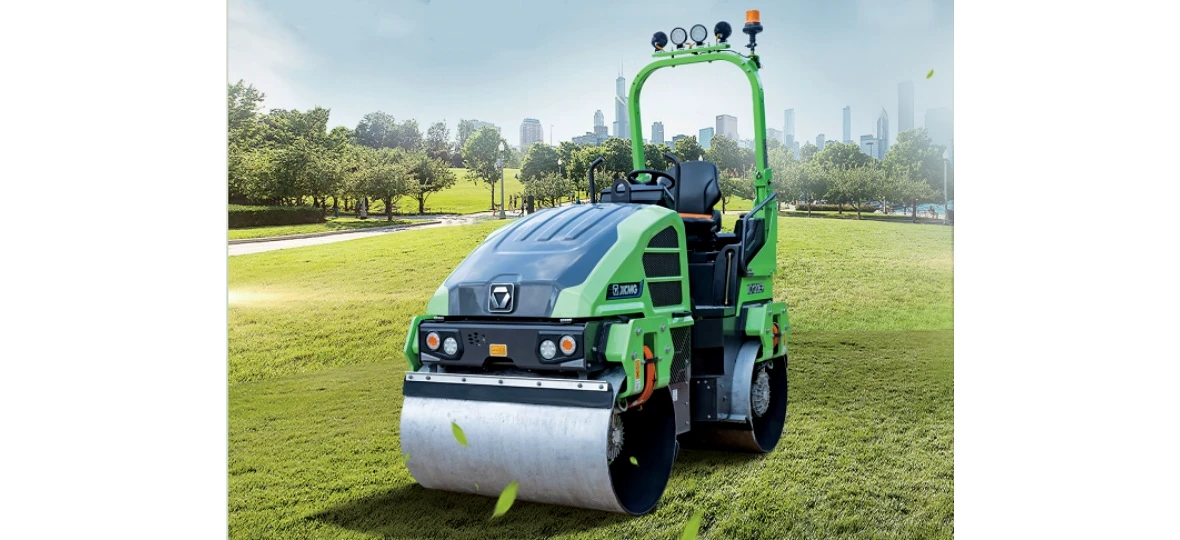

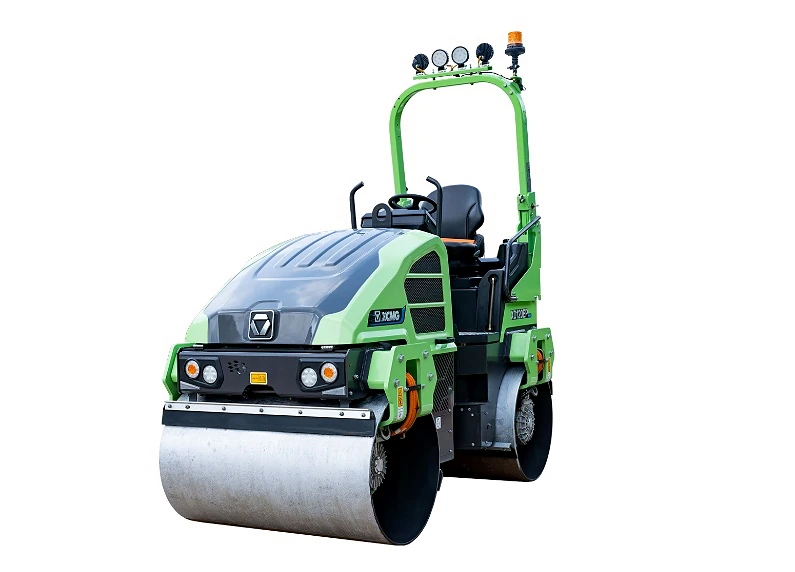

XCMG XD120EP Electric Light Tandem Roller

Overview

The XCMG XD120EP is a 3-ton battery-electric light tandem roller with dual-wheel drive and independent front and rear drum vibration. It is designed for new-road asphalt surface compaction, road maintenance and thin stabilized base layers.

XCMG positions the machine for municipal paving, repairs and restricted work zones where zero emissions, low noise, compact dimensions and good maneuverability matter.

Core Specifications

The following values are taken from the current XCMG China product page.

Parameter	Value
Operating weight	3,000 kg
Static linear load	122 N/cm
Vibration frequency	60 / 50 Hz
Centrifugal force	36 / 41 kN
Theoretical gradeability	30%
Battery capacity	690 Ah
Battery energy	31.4 kWh

Global Export Specification

The global product page lists a different vibration configuration, so it is shown separately rather than merged with the China specification.

Parameter	Value
Operating weight	3,000 kg
Static linear load	122 / 122 N/cm
Vibration frequency	42 / 45 / 50 Hz
Amplitude	0.42 mm
Centrifugal force	37 kN
Drum diameter × width	720 × 1,200 mm
Travel speed	0–10 km/h
Theoretical gradeability	30%
Ground clearance	275 mm
Steering angle	32°
Battery energy	31.4 kWh
Battery voltage	128 V

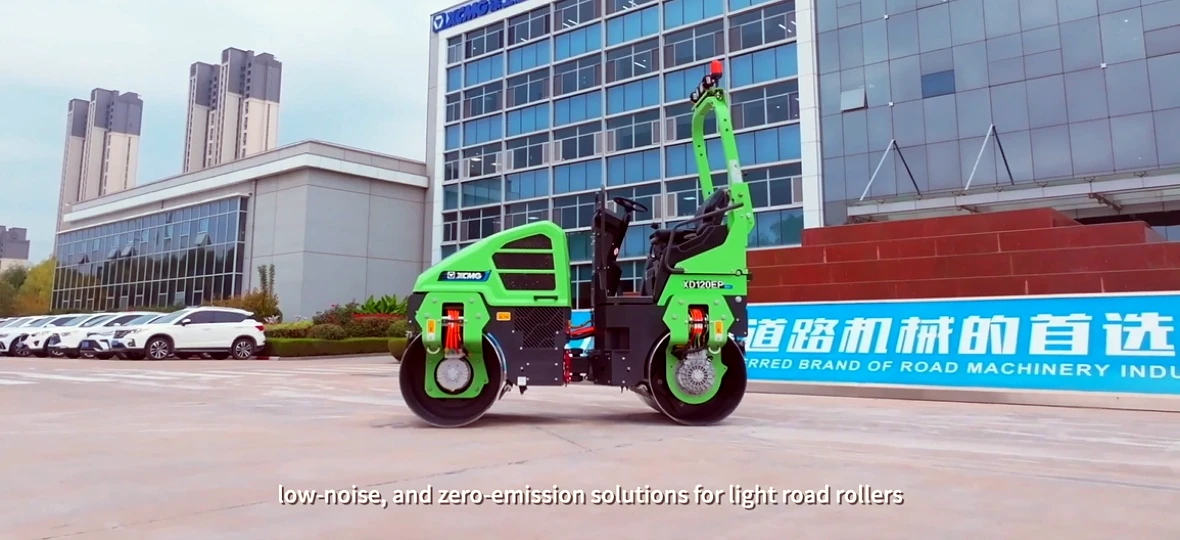

Key Features

• Battery-electric operation: zero tailpipe emissions and low operating noise for municipal and restricted-site work.
• Dual drive and dual vibration: both wheels are driven, and the front and rear drums can vibrate independently.
• High-frequency compaction: the global page describes small amplitude, high frequency and relatively large excitation force.
• Dual-frequency exciter: XCMG states that the excenter design provides two excitation-force settings for different working conditions.
• Compact and maneuverable: small turning envelope, compact structure and reduced operator blind spots.
• New 5-series design: updated styling, dual-side access and an ergonomic control layout.

Applications

New-road asphalt surface compaction, municipal paving, road repair and maintenance, thin stabilized soil layers, sidewalks, parking areas and confined paving sites.

Data Source

XCMG official China product page: XD120EP, fetched on 2026-10-05. Additional specifications follow the XCMG global product page: XD120EP.

The China page lists 60 / 50 Hz and 36 / 41 kN, while the global page lists 42 / 45 / 50 Hz and 37 kN. These appear to represent different domestic and export configurations and are retained separately. No public product brochure was exposed on the China page.

Specifications follow the XCMG official pages and may vary by batch and configuration. Final configuration and figures must be confirmed after order placement.
