XCMG XWR800 Drainage Robot

Overview

The XCMG XWR800 is a flood-relief and water-supply robot built for flood fighting and rescue in confined urban spaces — underground car parks, basements, metro stations and tunnels, culverts, underpasses and river channels. XCMG states it can take the place of a large drainage truck or a mobile pump station for confined-space pumping and casualty rescue.

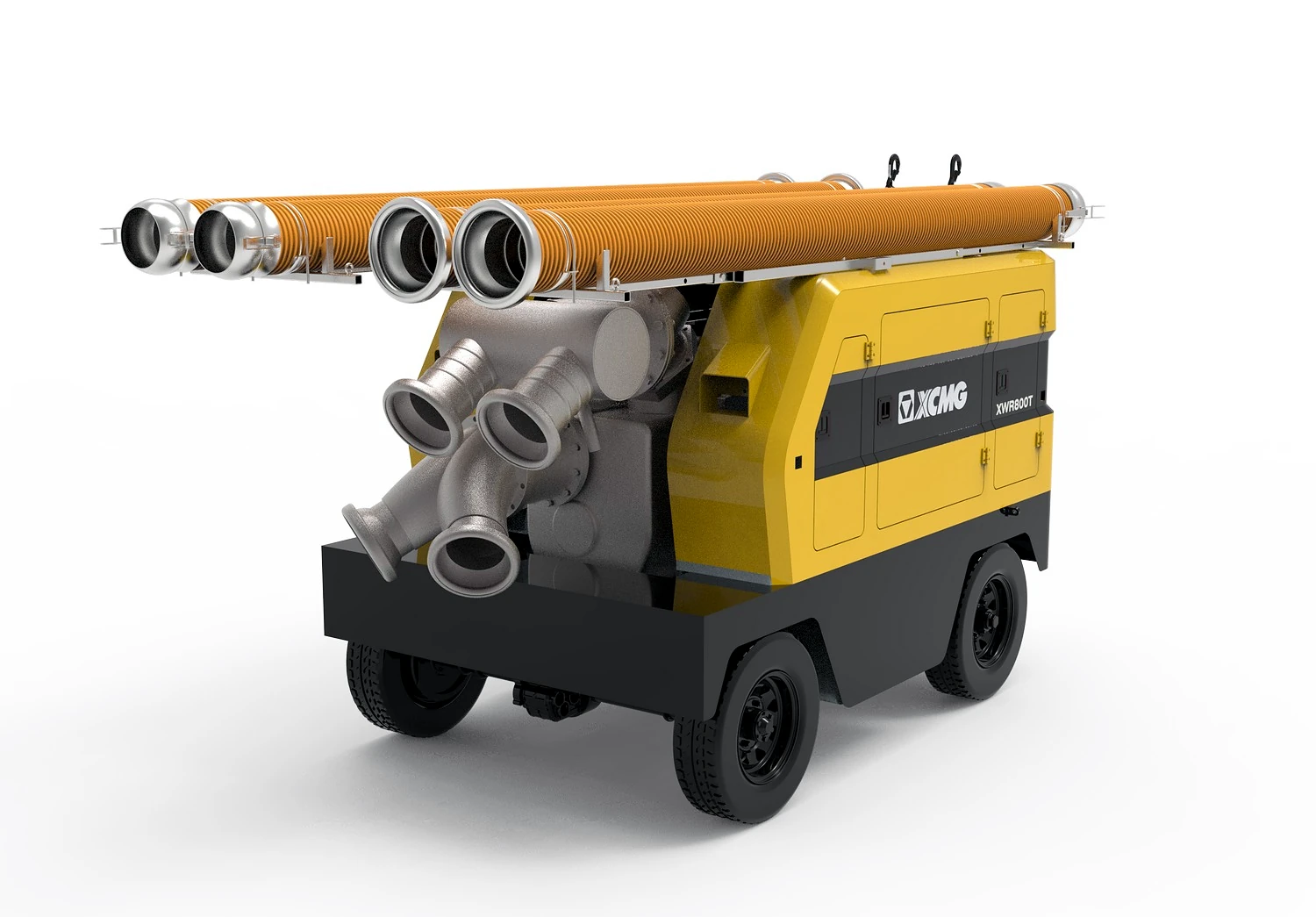

The range is offered in two versions with different running gear: the tracked XWR800 and the wheeled XWR800T. Both share the same flow rating, while the wheeled version is lighter and aimed at fast deployment.

Variant Comparison

Parameter	XWR800 (tracked)	XWR800T (wheeled)
Flow rate	800 m³/h	800 m³/h
Head (lift)	15–32 m	15–32 m
Operating weight	3 t	2.76 t
Running gear	Crawler tracks	Wheels
Wading depth	0.5 m	—

Key Features — XWR800 (Tracked)

• 800 m³/h drainage output, 0.5 m wading depth, and can be run in series with other units.
• Engine and fuel-supply system matched for steep-slope working, allowing continuous operation on ramps.
• Stainless-steel vacuum-assisted self-priming pump with 6.5 m suction lift, so the pump does not have to be submerged — reducing electric-shock risk and handling jobs with vertical height differences.
• Intelligent driving-assistance and machine-attitude sensing to reduce collision and rollover risk while travelling.
• Engine + clutch + pump mechanical drive with one-touch drainage and dry-run protection.

Key Features — XWR800T (Wheeled)

• 800 m³/h drainage output and series (cascade) operation.
• Can be towed at speed over distance or driven itself at low speed, for quick deployment and relocation.
• Same slope-capable engine and fuel-supply system for continuous ramp operation.
• Pump does not need to be submerged, reducing electric-shock risk and suiting jobs with vertical height differences.
• One-touch drainage and dry-run protection functions.

Applications

Municipal flood relief, underground-complex pumping, rail-transit pumping, river-channel works and farm irrigation.

Data Source

XCMG official product pages: tracked XWR800 (id=125130, id=136353) and wheeled XWR800T (id=125131, id=136352), fetched on 2026-10-04.

Specifications follow the XCMG official pages and may vary by batch and configuration. Confirm the tracked or wheeled version, pump set and engine configuration for your market before ordering.
